3. A quickstart example¶
In this page we show how to use |galario| in some typical use cases, e.g. the fit of some interferometric data sets.
|galario| has been designed to simplify and accelerate the task of computing the synthetic visibilities given a model image, leaving to the user the freedom to choose the most appropriate statistical tool for the parameter space exploration.
For the purpose of these examples we will adopt a Bayesian approach, using Monte Carlo Markov chains to explore the parameter space and to produce a sampling of the posterior probability function. In particular, we will use the MCMC implementation in the emcee Python package.

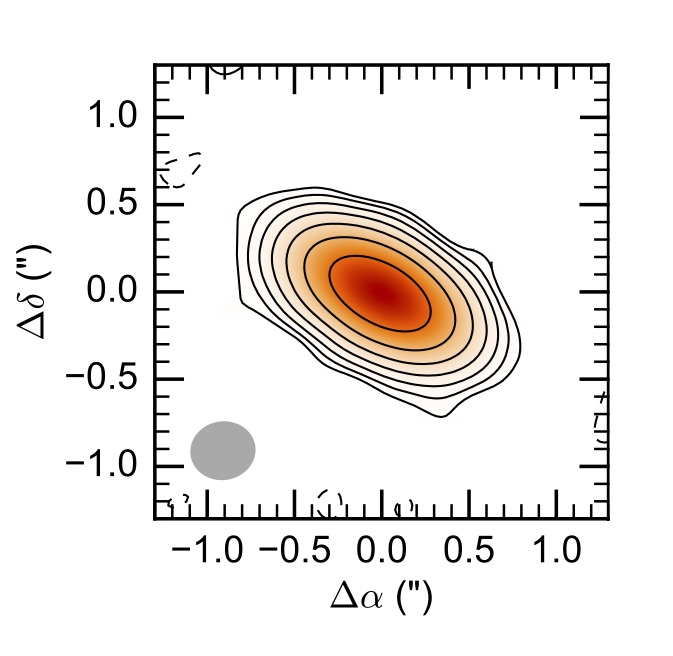

In this page we will show how to fit the mock observations of a protoplanetary disk. In particular, in the example we will analyse mock visibilities of the disk continuum emission at \(\lambda=\) 1 mm whose synthetized map is shown in this figure:
You can download here an ASCII version of the uv-table used in this example.
3.1. Fit a single-wavelength data set¶
1) Import the uv table
First, let’s import the table containing the interferometric observations. Typically, an interferometric data set can be exported to a table containing the \((u_j, v_j)\) coordinates (\(j=1...M\)), the Real and Imaginary part of the complex visibilities \(V_{obs\ j}\), and their theoretical weight \(w_{j}\), for example:
u [m] v [m] Re [Jy] Im [Jy] w ------------------------------------------------------------------------- -155.90093 234.34887 0.01810 0.13799 200.05723 9.290660 362.97853 -0.05827 0.02820 216.95405 95.23531 109.22704 0.06314 -0.16727 167.18789 94.01319 251.97293 0.01974 0.04358 179.69114 -60.45751 211.33346 0.14856 -0.07756 188.09953 91.59843 68.94947 0.12741 -0.12871 156.32432 23.29531 251.71338 0.01568 -0.12316 189.58017 -135.83509 -29.77982 -0.02017 -0.00010 207.29354 59.38624 144.99431 0.04759 -0.08606 201.32301 192.43093 171.57617 -0.02176 -0.02661 208.52030 -243.91416 76.18790 -0.02306 -0.01430 207.16036 58.72442 276.64959 0.03325 0.04560 173.15922 35.56591 111.28235 0.03777 -0.11856 194.83899 ... ... ... ... ...You can download here an ASCII version of the uv-table used in this example.
A table like this one can be read with:
u, v, Re, Im, w = np.require(np.loadtxt("uvtable.txt", unpack=True), requirements='C') wle = 1e-3 # [m] u /= wle v /= wlewhere the \(u_j\) and \(v_j\) coordinates have been converted in units of the observing wavelength, 1 mm in this example. The np.require command is necessary to ensure that the arrays are C-contiguous as required by |galario| (see FAQ 1.1).
- 2) Determine the image size
Once imported the uv table, we can start using |galario| to compute the optimal image size
from galario.double import get_image_size nxy, dxy = get_image_size(u, v, verbose=True)
where the returned values are the number of pixels (nxy) and the pixel size (dxy) in radians. nxy and dxy are chosen to fulfil criteria that ensure a correct computation of the synthetic visibilities. For more details, refer to Sect. 3.2 in Tazzari, Beaujean and Testi (2017).
- 3) Define the brightness model
Let us define the model: for this example, we will use a very simple Gaussian profile:
from galario import arcsec def GaussianProfile(f0, sigma, Rmin, dR, nR): """ Gaussian brightness profile. """ # radial grid R = np.linspace(Rmin, Rmin + dR*nR, nR, endpoint=False) return f0 * np.exp(-0.5*(R/sigma)**2)
where f0 (Jy/sr) is a normalization, sigma is the width of the Gaussian, Rmin is the innermost radius of the grid, dR is the size of radial grid and nR is the number of radial grid cells. sigma, Rmin, dR should be passed to GaussianProfile() in arcseconds and f0 in Jy/sr.
- 4) Setup the MCMC Ensemble Sampler
In our fit we will have 6 free parameters: on top of the model parameters f0 and sigma we want to fit the inclination inc, the position angle PA, and the angular offsets \((\Delta RA, \Delta Dec)\) with respect to the phase center. Following the notation of the emcee documentation, we initialise the EnsembleSampler
from emcee import EnsembleSampler # radial grid parameters Rmin = 1e-4 # arcsec dR = 0.01 # arcsec nR = 2000 # parameter space domain p_ranges = [[1, 20], [0., 8.], [0., 90.], [0., 180.], [-2., 2.], [-2., 2.]] ndim = len(p_ranges) # number of dimensions nwalkers = 40 # number of walkers nthreads = 4 # CPU threads that emcee should use sampler = EnsembleSampler(nwalkers, ndim, lnpostfn, args=[p_ranges, Rmin, dR, nR, nxy, dxy, u, v, Re, Im, w], threads=nthreads)
where:
p_ranges is a rectangular domain in the parameter space that defines the search region;
lnpostfn is the posterior probability function;
args defines an array of fixed parameters that lnpostfn takes additionally in input.
- 5) Define the posterior and the prior probability functions
Let us now implement the posterior function, using |galario| to compute the \(\chi^2\). Since in this example we are assuming an axisymmetric brightness profile we will use the chi2Profile function, but the same design holds for the chi2Image function that should be used for non-axisymmetric profiles.
from galario import deg, arcsec from galario.double import chi2Profile def lnpostfn(p, p_ranges, Rmin, dR, nR, nxy, dxy, u, v, Re, Im, w): """ Log of posterior probability function """ lnprior = lnpriorfn(p, p_ranges) # apply prior if not np.isfinite(lnprior): return -np.inf # unpack the parameters f0, sigma, inc, PA, dRA, dDec = p f0 = 10.**f0 # convert from log to real space # convert to radians sigma *= arcsec Rmin *= arcsec dR *= arcsec inc *= deg PA *= deg dRA *= arcsec dDec *= arcsec # compute the model brightness profile f = GaussianProfile(f0, sigma, Rmin, dR, nR) chi2 = chi2Profile(f, Rmin, dR, nxy, dxy, u, v, Re, Im, w, inc=inc, PA=PA, dRA=dRA, dDec=dDec) return -0.5 * chi2 + lnprior
where the normalization f0 is explored in the logarithmic space to achieve a faster convergence and lnpriorfn is the prior probability function defined as a uniform prior:
def lnpriorfn(p, par_ranges): """ Uniform prior probability function """ for i in range(len(p)): if p[i] < par_ranges[i][0] or p[i] > par_ranges[i][1]: return -np.inf jacob = -p[0] # jacobian of the log transformation return jacob
which, up to a constant, basically checks that p lies inside the rectangular domain defined by the extents in p_ranges.
- 6) Ready to go: run the MCMC!
We are now ready to start the MCMC:
nsteps = 3000 # total number of MCMC steps # initial guess for the parameters p0 = [10, 0.5, 70., 60., 0., 0.] # 3 parameters for the model + 4 (inc, PA, dRA, dDec) # initialize the walkers with an ndim-dimensional Gaussian ball pos = [p0 + 1e-4*np.random.randn(ndim) for i in range(nwalkers)] # execute the MCMC pos, prob, state = sampler.run_mcmc(pos, nsteps, rstate0=state, lnprob0=prob)
It is possible to run the whole fit collecting the code blocks above into a single quickstart.py file and running python quickstart.py. For reference, using nthreads=4, the run takes approximately 5-8 mins on a laptop with an Intel i5 2.9GHz.
7) Plot the fit results
Once the run has completed, we can inspect the fit results. We will produce two informative plots. First, the so called corner plot, which shows the 1D and 2D marginalised posterior distributions of the free parameters (bottom left figure). To produce this plot we use the corner package, which can be easily installed with pip install corner.
# do the corner plot import corner samples = sampler.chain[:, -1000:, :].reshape((-1, ndim)) fig = corner.corner(samples, labels=["$f_0$", "$\sigma$", r"$i$", r"PA", r"$\Delta$RA", r"$\Delta$Dec"], show_titles=True, quantiles=[0.16, 0.50, 0.84], label_kwargs={'labelpad':20, 'fontsize':0}, fontsize=8) fig.savefig("triangle_example.png")Second, the so called uv-plot which shows the comparison between the visibilities of the bestfit model and the observed ones (bottom right figure). To produce the uv-plot we use the uvplot package, which can be easily installed with pip install uvplot.
# do the uv-plot # select the bestfit model (here, e.g., the model with median parameters) bestfit = [np.percentile(samples[:, i], 50) for i in range(ndim)] f0, sigma, inc, PA, dRA, dDec = bestfit f0 = 10.**f0 # convert from log to real space # convert to radians sigma *= arcsec Rmin *= arcsec dR *= arcsec inc *= deg PA *= deg dRA *= arcsec dDec *= arcsec f = GaussianProfile(f0, sigma, Rmin, dR, nR) # compute the visibilities of the bestfit model vis_mod = g_double.sampleProfile(f, Rmin, dR, nxy, dxy, u, v, inc=inc, PA=PA, dRA=dRA, dDec=dDec) from uvplot import UVTable uvbin_size = 30e3 # uv-distance bin, units: wle # observations uv-plot uv = UVTable(uvtable=[u*wle, v*wle, Re, Im, w], wle=wle) uv.apply_phase(-dRA, -dDec) # center the source on the phase center uv.deproject(inc, PA) axes = uv.plot(linestyle='.', color='k', label='Data', uvbin_size=uvbin_size) # model uv-plot uv_mod = UVTable(uvtable=[u*wle, v*wle, vis_mod.real, vis_mod.imag, w], wle=wle) uv_mod.apply_phase(-dRA, -dDec) # center the source on the phase center uv_mod.deproject(inc, PA) uv_mod.plot(axes=axes, linestyle='-', color='r', label='Model', yerr=False, uvbin_size=uvbin_size) axes[0].figure.savefig("uvplot_example.pdf")

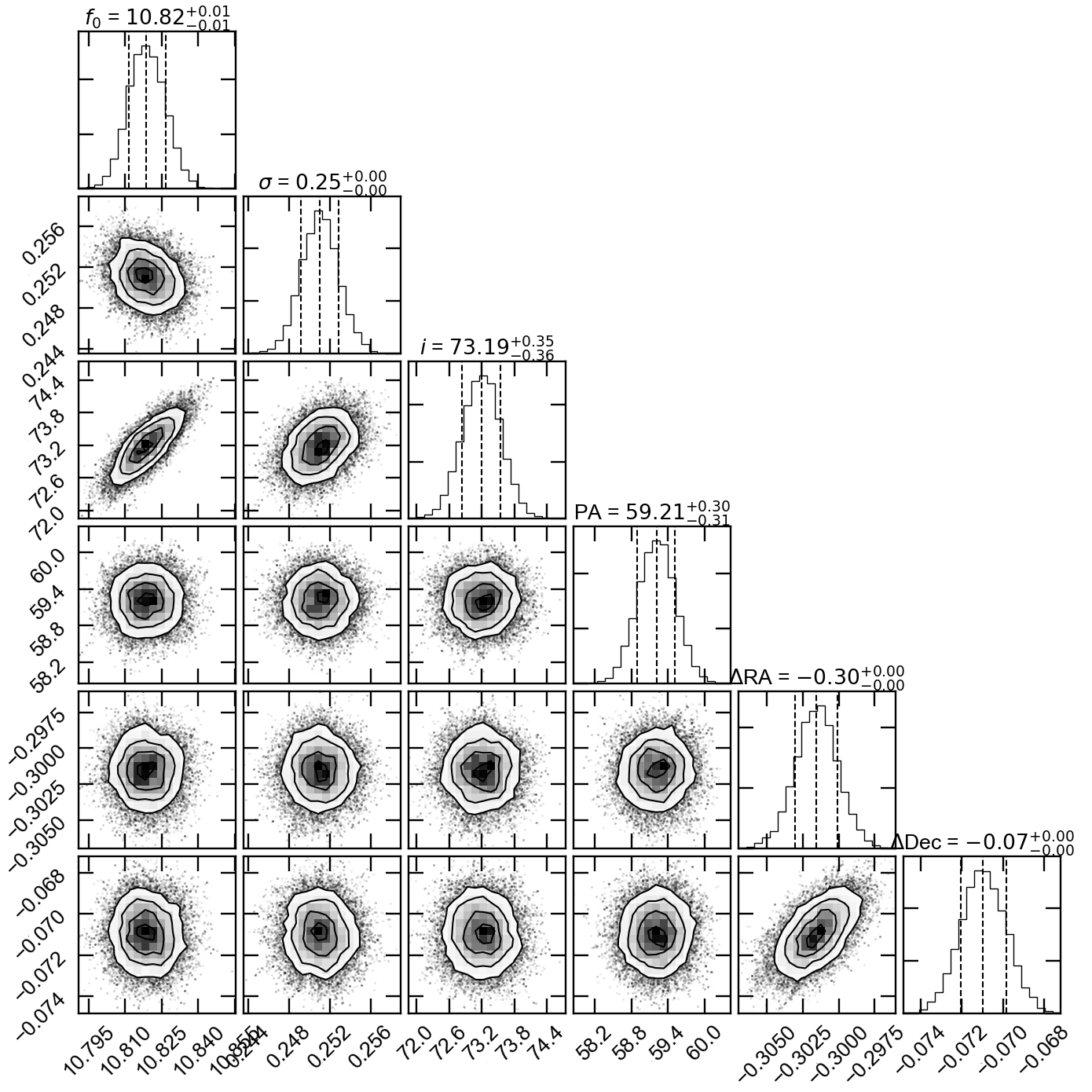

Corner plot showing the marginalised posteriors

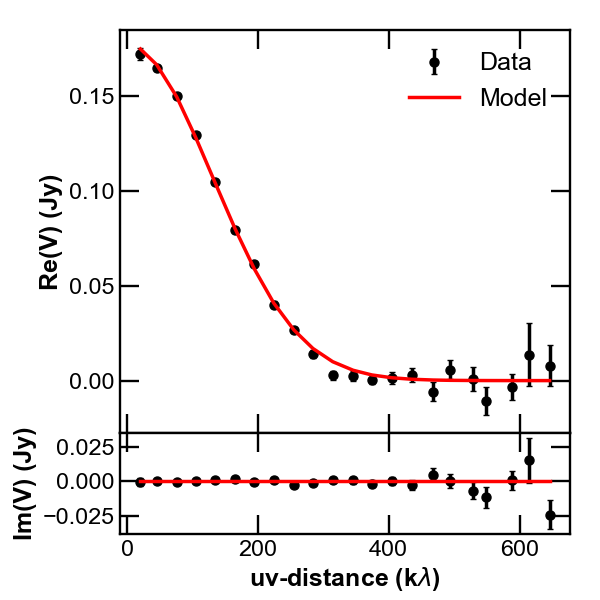

Uv-plot showing the deprojected visibilities
